• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
•
• Here are the dimensions of Taper Bushing with type 2517 (65.45)
• - Bore : we provide taper bushing with minimal bore 16 mm and 3/4 inches; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC6545F16 (2517X16MM), so the max bore is 65 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC6545F16 (2517X16MM), so the width is 45 mm.
• - Bore size : look at the last number in every product name.
• for example, BC6545F16, so the bore size is 16.

No description for this product yet.

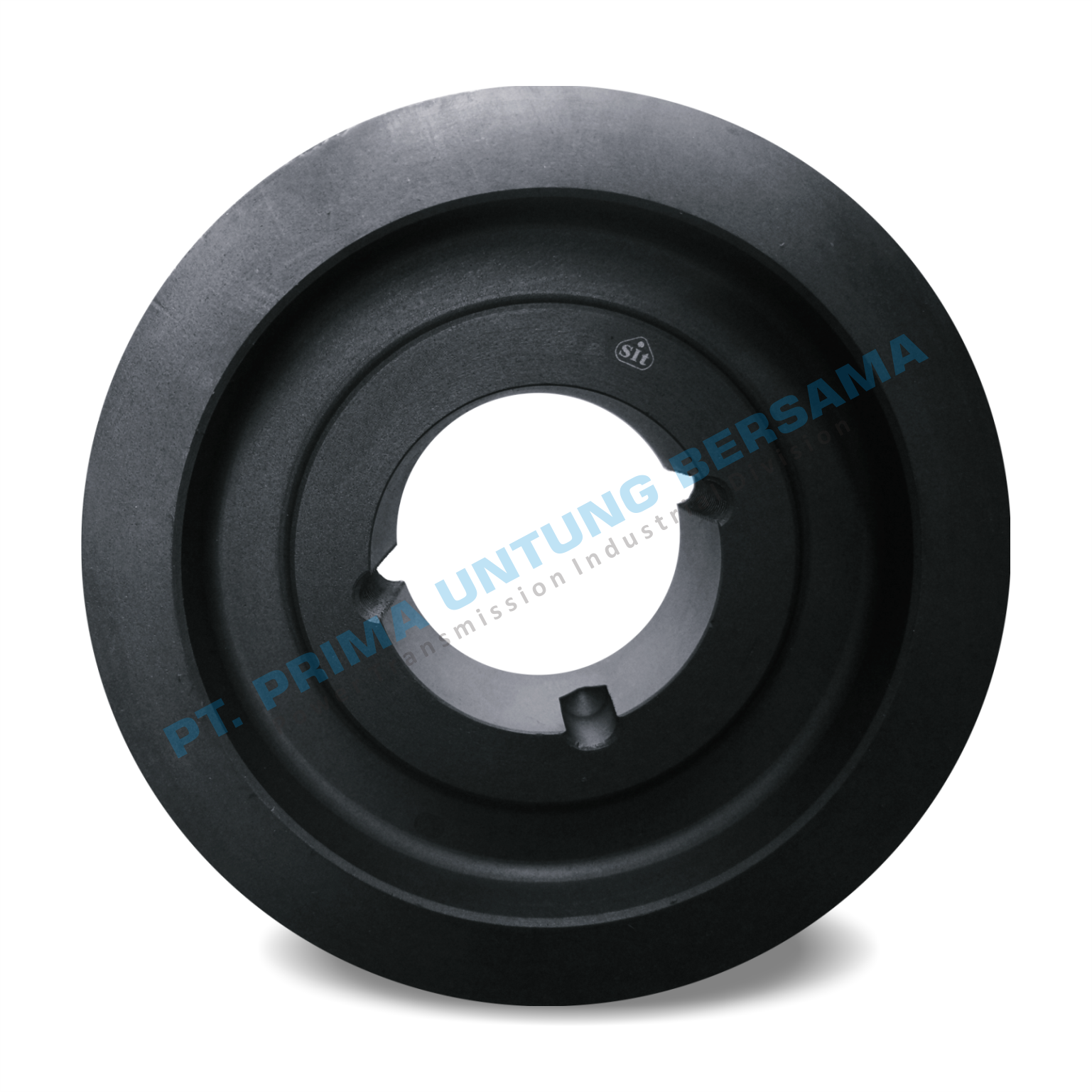

• Taper Bush : 2012
• Shaft Diameter Range : 15 - 50 mm
• Pitch Diameter : 125 mm
• Outside Diameter : 132 mm
• Groove : 3

• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
•
• Here are the dimensions of Taper Bushing with type 1215 (30.40)
• - Bore : we provide taper bushing with minimal bore 11 mm and 1 inches; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC3040F11 (1215X11MM), so the max bore is 30 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC3040F11 (1215X11MM), so the width is 40 mm.
• - Bore size : look at the last number in every product name.
• for example, BC3040F11, so the bore size is 11.

• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
•
• Here are the dimensions of Taper Bushing with type 1610 (40.25)
• - Bore : we provide taper bushing with minimal bore 12 mm and 3/8 inches; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC4025F12 (1610X12MM), so the max bore is 40 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC4025F12 (1610X12MM), so the width is 25 mm.
• - Bore size : look at the last number in every product name.
• for example, BC4025F12, so the bore size is 12.

No description for this product yet.

• Taper Bush : 3020
• Shaft Diameter Range : 25 - 75 mm
• Pitch Diameter : 250 mm
• Outside Diameter : 257 mm
• Groove : 3

• TRASCO flexible couplings is the flexible and omocinetic coupling that assures the best performance in relation to the physical space occupied in its class. It has a very compact design and allows safe power transmision by absorbing peak loads and torsional vibrations.
•
• Spider detail
• Color : Yellow
• Shore : 92 Sh.A
• Compound : Polyurethane
• Admissible Temperature [°C] : from - 40 to + 90 (on work)

Sprocket for chain according to DIN 8187 - ISO/R 606

D_e : External Diameter   mm

D_p : Pitch Diameter        mm

D_m : Hub Diameter        mm

W  :  Weight                  kg

• SITEX® gear couplings consist of two toothed hubs which are connected with one internally toothed sleeve. The sleeve is manufactured from stabilized 6.6 superpolyamide resin.
•
• The torsional rigidity of the sleeve prevents angular speed variation. The combination of steel hubs with polyamide sleeve makes the coupling maintenance and lubrication free.
•
• The particular toothed profile prevents contact of tooth edged with the sleeve, ensuring long life of the coupling.
•
• Here are the dimensions of product :
• Outside diameter : 66 mm
• Length : 47 mm

• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
• Here are the dimensions of Taper Bushing with type 1108 (28.20)
• - Bore : we provide taper bushing with minimal bore 9 mm and 3/8 inches; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC2820F10 (1108X10MM), so the max bore is 28 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC2820F10 (1108X10MM), so the width is 20 mm.
• - Bore size : look at the last number in every product name.
• for example, BC2820F10, so the bore size is 10.

No description for this product yet.

• No Lubrication
• Easy Instalation
• No metal to metal contact
• Resistant to oil, dirt, sand, moisture, grease
• Easy inspection of load carrying spider
• Flexibility of angular or parallel misalignment of shafts by Bruna-N spider member permits smooth "power transmission"

• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
•
• Here are the dimensions of Taper Bushing with type 2012 (50.30)
• - Bore : we provide taper bushing with minimal bore 14 mm and 5/8 inches; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC5030F14 (2012X14MM), so the max bore is 50 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC5030F14 (2012X14MM), so the width is 30 mm.
• - Bore size : look at the last number in every product name.
• for example, BC5030F14, so the bore size is 14.

No description for this product yet.

• SIT TAPER LOCK BUSHING is designed to give the following:
• 1. Perfect assembly
• 2. rapid dismantling of the pulley and other transmission equipment
• 3. No special tools requirement except hexagonal key
•
• The large range of finished bores available ensures that an immediate assembly can be made thus avoiding costly factory down-time.
•
•
• Here are the dimensions of Taper Bushing with type 3535 (90.90)
•
• - Bore : we provide taper bushing with minimal bore 25 mm; for the max bore you can look at the number writen after "BC" in every product name.
• for example, BC9090F25 (3535X25MM) so the max bore is 90 mm.
• - Width : the numbers writen in every product name before "F" is width size.
• for example, BC9090F25 (3535X25MM), so the width is 90 mm.
• - Bore size : look at the last number in every product name.
• for example, BC9090F25, so the bore size is 25.

• SITEX® gear couplings consist of two toothed hubs which are connected with one internally toothed sleeve. The hubs are made of steel and the teeth, which are both profiled and section crowned, are obtained from milling. The sleeve is manufactured from stabilized 6.6 superpolymade resin.
•
• Here are the dimensions of product :
• Outside diameter of sleeve : : 52 mm
• Outside diameter of the hub : 35 mm
• Total length : 56 mm
• Length of sleeve : 41 mm

Sprocket for chain according to DIN 8187 - ISO/R 606

D_e : External Diameter   mm

D_p : Pitch Diameter        mm

D_m : Hub Diameter        mm

W  :  Weight                  kg

Sprocket for chain according to DIN 8187 - ISO/R 606

D_e : External Diameter   mm

D_p : Pitch Diameter        mm

D_m : Hub Diameter        mm

W  :  Weight                  kg

• Type of belt : XL
• Pitch : 5080 mm
• Pitch diameter : 17.28 mm
• Outside diameter + flange: 20
• Teeth : 11
• Belt width : 0.37 inch
• Type of pulley : 1
• Material : Aluminium
• Flange : With flanges
